Heracast iQ – induction-heated vacuum pressure casting machine

฿ 1,150,000.00

Vacuum pump and cooling are integrated into the compact table-top unit. Just plug it in – it’s ready for use. The Heracast iQ interactively prompts for all information and actions. The risk of operator errors is virtually eliminated. The optimised casting-chamber mechanism makes insertion of the casting mould and filling with metal child’s play. The powerful HF generator quickly and gently heats high-gold-content and cobalt-chrome alloy to casting temperature. The Heracast iQ automatically controls the casting process or the operator can control it manually. The results are fine-grained and dense casts with smooth surfaces. Graphite or ceramic inclusions are a thing of the past. Casting is now fun.

สินค้าหมดแล้ว

รายละเอียดเพิ่มเติม

Description

Vacuum pump and cooling are integrated into the compact table-top unit. Just plug it in – it’s ready for use. The Heracast iQ interactively prompts for all information and actions. The risk of operator errors is virtually eliminated. The optimised casting-chamber mechanism makes insertion of the casting mould and filling with metal child’s play. The powerful HF generator quickly and gently heats high-gold-content and cobalt-chrome alloy to casting temperature. The Heracast iQ automatically controls the casting process or the operator can control it manually. The results are fine-grained and dense casts with smooth surfaces. Graphite or ceramic inclusions are a thing of the past. Casting is now fun.



Technical Data

Rated voltage: 230 V (± 10 %); 50/60 Hz
Melting type: Induction
Power rating: 2.0 kVA for generator
2.6 kVA for the complete unit
Casting temperature: > 1750°C
Alloys: Precious metal; non-precious metal; model casting
Volume of alloy (precious metal): 130 g
Volume of alloy (non-precious metal): 60 g
Casting sequence: 3 – 5 min
Operating mode: 100 % duty cycle
Dimensions (W x D x H): 770 x 490 x 450 mm
Floor space required (W x D x H): 1000 x 490 x 550 mm
Weight: 65 kg
Languages: DE, GB, F, I, E
Interface: yes, RS 232
(serial PC port for service only)
Input pressure: 4 – 7 bar
Working pressure: 3.3 bar
Pressure sensor: digital
Pressure safety valve: yes
Max. vacuum: < 50 mbar
Vacuum adjustment: digital via software
Vacuum pump: integrated
Water cooling integrated ~2.5 litres

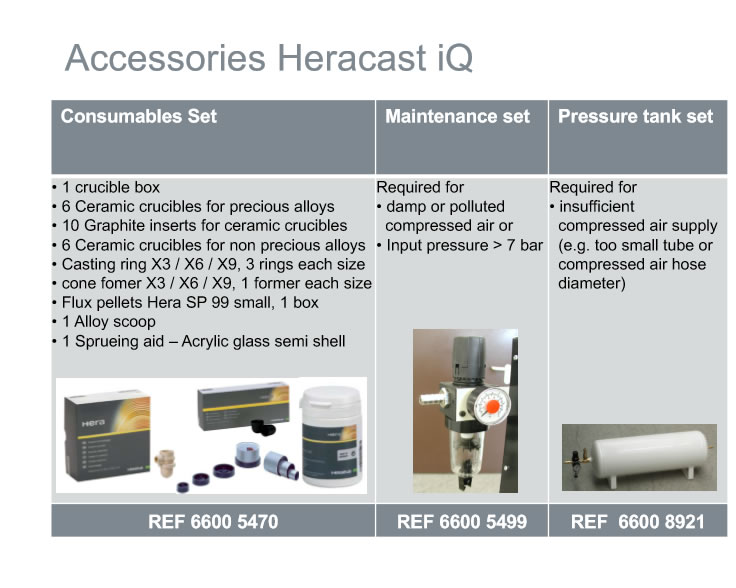

Accessories

Maintenance set (required in case of moist or
contaminated compressed air or with supply pressure > 7 bar)
6600 5499
Pressure accumulator tank
(required in case of insufficient compressed air line diameter)
6600 8921
Consumables Heracast iQ / EC 6600 5470
Crucible holder 1 pieces 6450 0509
Ceramic crucible for precious metal alloys 1 package 6450 0683
Graphite insert for ceramic crucible 1 package 6450 0684
Ceramic crucible for NPM alloys 1 package 6450 0685
Casting ring X3 3 pieces 6450 0694
Casting ring X6 3 pieces 6450 0696
Casting ring X9 3 pieces 6450 0698
Crucible former X3 1 pieces 6450 0708
Crucible former X6 1 pieces 6450 0710
Crucible former X9 1 pieces 6450 0712
Flux pellets, small 1 package 6450 0982
Scoop 1 pieces 6600 2415
Sprueing aid – Plexiglas half-shell 1 pieces 6460 0012

ข้อมูลเพิ่มเติม

น้ำหนัก 65 กก.
Manufacturer

Germany
